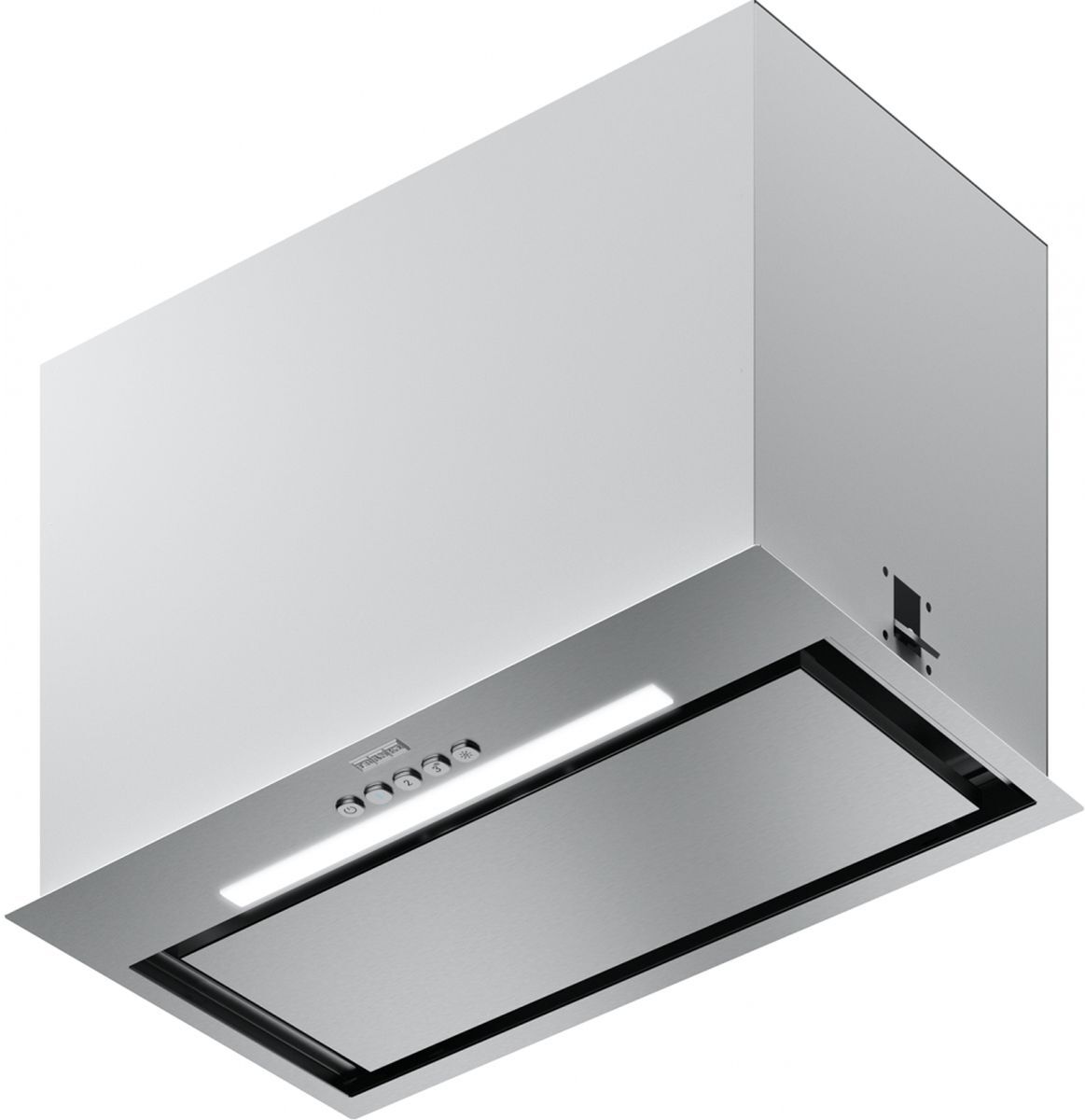

Franke BOX-EVO-52CM-XS 50cm Wide Integrated Hood - Stainless Steel - B Rated
Seen it cheaper?
Give us a call
01737 240403
£475.00
Was £495.00
Save £20.00
From
Seen it Cheaper?
Add to Multibuy
£475.00
Was £495.00
Save £20.00
Is The Place To Go
Overview
Product Overview
The Franke hoods BOX-EVO-52CM-XS integrated hood is a sophisticated addition to any kitchen, designed to blend seamlessly with its flush mounted under-cabinet design in stainless steel. With three speeds and a booster power level, it achieves a maximum extraction rate of 620 m³/h, ensuring efficient ventilation. Despite its power, it maintains a discreet noise level, peaking at 67 dB. The hood is suitable for both air extraction and recirculation modes, offering flexibility. Energy efficient with a rating of B, it features easy-to-use push button controls and an LED light for optimal visibility. Includes an aluminium grease filter for convenience.
| Brand | Franke |
| Model |
BOX-EVO-52CM-XS
Alt Codes
EAN: Stainless Steel - 7612986205725 |
| Colour | Stainless Steel |
| Warranty | 2 Years |
| kWh per annum |
75
Estimate running costs
Estimate costs
Approx.
£22.5
per year
|

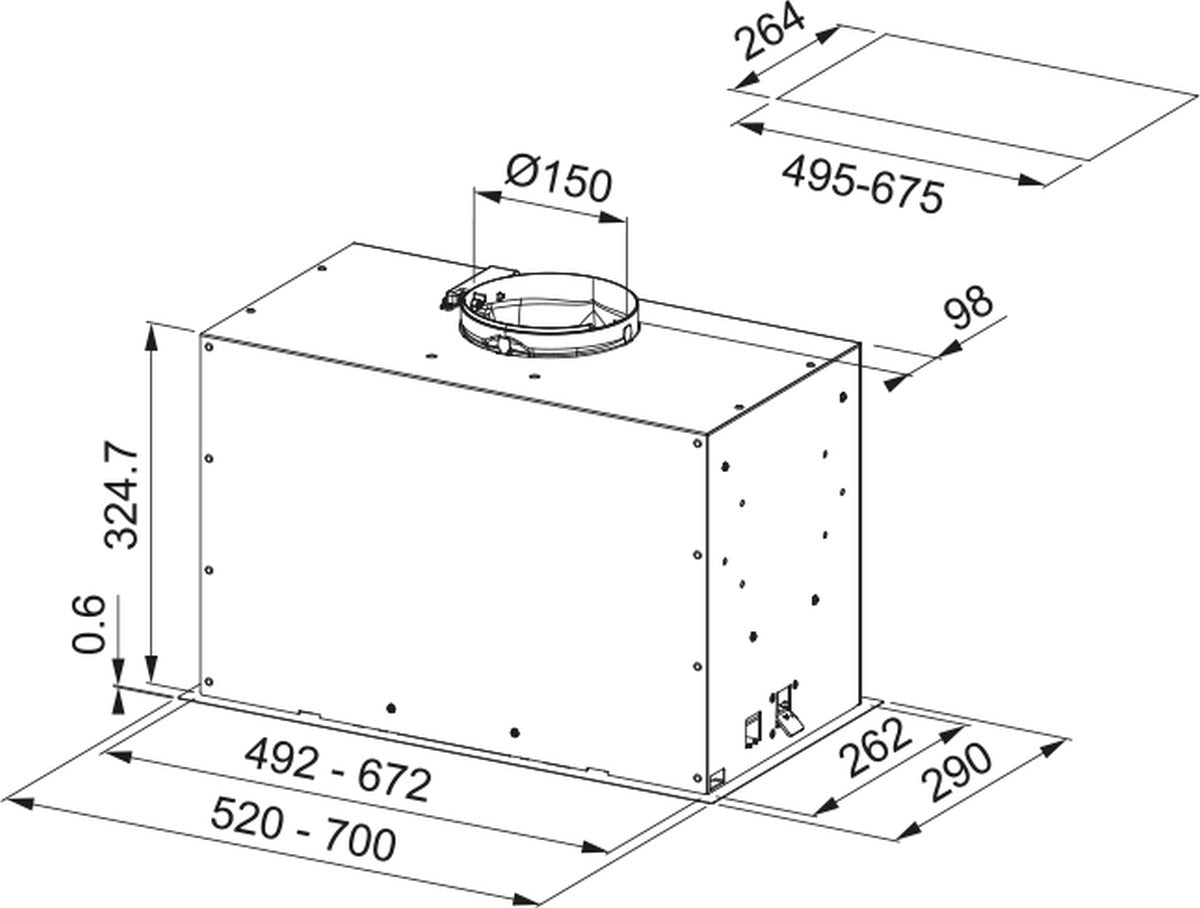

| Dimensions (cm) | H: 32.47 x W: 52.0 x D: 29.0 |
| Release Date | July 2026 |
Key Features
Brand Overview
Features
Franke Box EVO 52cm Flush Mounted Under-Cabinet Hood - Stainless Steel
Key Information
- 3 Speeds And A Booster Power Level: Yes
- Maximum Extraction Rate (Normal Use): 550 M³/H
- Maximum Extraction Rate (Using Booster): 620 M³/H
- Maximum Noise Level (Normal Use): 64 dB
- Maximum Noise Level (Using Booster): 67 dB
- Airflow Range: 280 - 620 M³/H
- Noise Level Range: 47 - 67 dB
- Energy Efficiency Rating: B
- Suitable For Air Extraction: Yes
- Suitable For Air Extraction Or Recirculation Mode: Yes
- Internet Connected Appliance: No
Design
- Chimney Flue Included: No
- Controls: Push Button Control
- Finish: Stainless Steel
- Hood Type: Flush Mounted Under-Cabinet Hood
- Motor: Internal Motor
- Range: Franke Integrated Hood
- Remote Control Available: No
- Width: 52 cm
Lighting
- Lighting: 1 LED Lighting (3 W)
- Lighting Class: A
- Number Of Lamps: 1
Features
- Grease Alert: Not Specified
- Intensive Speed Function: Yes
- Washable Grease Filter: Not Specified
Technical Info
- Annual Efficiency Consumption: 75 kWh/Year
- Duct Size: 150 mm
- Fluid Class: C
- Grease Filter Efficiency Class: D
- Minimum Distance From Electric Cooking Top: 45 cm
- Minimum Distance From Gas Cooking Top: 65 cm
- Product Code: Box-EVO-52cm-XS
Included Accessories
- Aluminium Grease Filter: Yes
Associated Models
- Box EVO FBFE XS A70
Description
The Franke hoods BOX-EVO-52CM-XS integrated hood is a high-performance, flush-mounted, under-cabinet solution designed to enhance your kitchen environment with its sleek stainless steel finish. This hood combines sophisticated aesthetics with advanced functionality, making it an essential addition to any modern kitchen setup.
This model offers three adjustable speeds and an additional booster level, demonstrating a powerful maximum extraction rate of 620 m³/h, making it efficient in maintaining a fresh kitchen atmosphere. In its normal use mode, it provides an extraction rate of 550 m³/h, proving effective at removing unwanted odours and particles.
The noise level for the BOX-EVO-52CM-XS is carefully balanced for comfort, producing a maximum of 67 dB with the booster mode activated. Even at this level, the hood operates quietly enough to maintain the serene ambiance of your home, while the normal operation keeps noise levels at a manageable 64 dB.
In terms of energy consumption, this hood is designed with efficiency in mind, featuring a B energy efficiency rating and an annual consumption of 75 kWh, which ensures that you can maintain high performance without excessive energy use. The air extraction or recirculation modes provide flexibility in how you use the appliance, catering to various kitchen ventilation needs.
The design includes a user-friendly push button control system and an internal motor, facilitating straightforward and intuitive operation. Measuring 52 cm in width, the BOX-EVO-52CM-XS is meticulously crafted to fit seamlessly under cabinets, providing a minimalist yet effective kitchen ventilation solution.
Lighting is a strong point in the design of the Franke hoods BOX-EVO-52CM-XS. It features one energy-efficient, 3 W LED light, classified under Lighting Class A, providing clear illumination over your cooking area to enhance visibility while adding a touch of elegance to the space.
Technically, the hood is tailored for practicality. It includes an aluminium grease filter, adept at capturing airborne grease particles, maintaining the appliance’s performance over time. The duct size is 150 mm, and the fluid dynamic efficiency falls under class C, ensuring effective ventilation performance.
Maintenance and installation are simplified with the inclusion of an intensive speed function, ensuring that the hood can handle heavy-duty cooking emissions with ease. The appliance fits with a minimum distance of 45 cm from an electric cooking top and 65 cm from a gas cooking top, ensuring safe and optimal operation.
Overall, the Franke hoods BOX-EVO-52CM-XS combines practicality with elegance, providing a tailored solution for any kitchen demanding efficiency, subtle style, and advanced functionality without the need for internet connectivity or remote controls.
This model offers three adjustable speeds and an additional booster level, demonstrating a powerful maximum extraction rate of 620 m³/h, making it efficient in maintaining a fresh kitchen atmosphere. In its normal use mode, it provides an extraction rate of 550 m³/h, proving effective at removing unwanted odours and particles.
The noise level for the BOX-EVO-52CM-XS is carefully balanced for comfort, producing a maximum of 67 dB with the booster mode activated. Even at this level, the hood operates quietly enough to maintain the serene ambiance of your home, while the normal operation keeps noise levels at a manageable 64 dB.
In terms of energy consumption, this hood is designed with efficiency in mind, featuring a B energy efficiency rating and an annual consumption of 75 kWh, which ensures that you can maintain high performance without excessive energy use. The air extraction or recirculation modes provide flexibility in how you use the appliance, catering to various kitchen ventilation needs.
The design includes a user-friendly push button control system and an internal motor, facilitating straightforward and intuitive operation. Measuring 52 cm in width, the BOX-EVO-52CM-XS is meticulously crafted to fit seamlessly under cabinets, providing a minimalist yet effective kitchen ventilation solution.
Lighting is a strong point in the design of the Franke hoods BOX-EVO-52CM-XS. It features one energy-efficient, 3 W LED light, classified under Lighting Class A, providing clear illumination over your cooking area to enhance visibility while adding a touch of elegance to the space.
Technically, the hood is tailored for practicality. It includes an aluminium grease filter, adept at capturing airborne grease particles, maintaining the appliance’s performance over time. The duct size is 150 mm, and the fluid dynamic efficiency falls under class C, ensuring effective ventilation performance.
Maintenance and installation are simplified with the inclusion of an intensive speed function, ensuring that the hood can handle heavy-duty cooking emissions with ease. The appliance fits with a minimum distance of 45 cm from an electric cooking top and 65 cm from a gas cooking top, ensuring safe and optimal operation.
Overall, the Franke hoods BOX-EVO-52CM-XS combines practicality with elegance, providing a tailored solution for any kitchen demanding efficiency, subtle style, and advanced functionality without the need for internet connectivity or remote controls.
