Elica BOXIN-HE-90 90cm Wide Integrated Hood - White Glass / Stainless Steel - B Rated

Seen it cheaper?
Give us a call 01737 240403
Further £20 Off

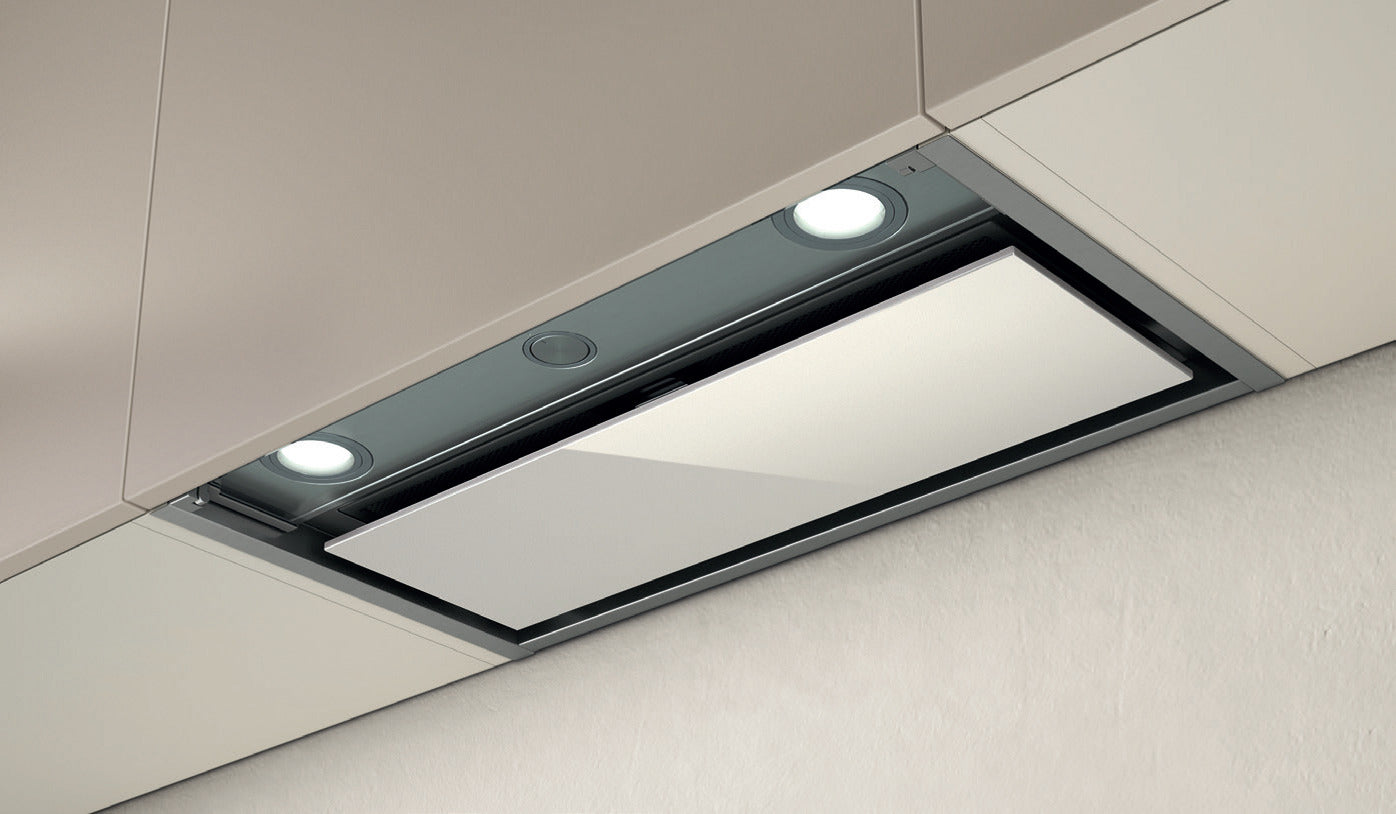

Integrated into your existing kitchen cabinetry, this stainless steel and white glass extractor hood is only visible from the bottom. It may be minimalistic in design but certainly not in performance. With three fan speeds reaching a top extracting rate of 610 cubic meters per hour, you can control the hood to match your kitchen’s odour and noise levels.

Brand Elica
BOXIN-HE-90 Alt Codes

EAN: White Glass / Stainless Steel - 8020283036420

Colour White Glass / Stainless Steel
Warranty 2 Years
kWh per annum 60 Estimate running costs Estimate costs
Approx. £18.0 per year

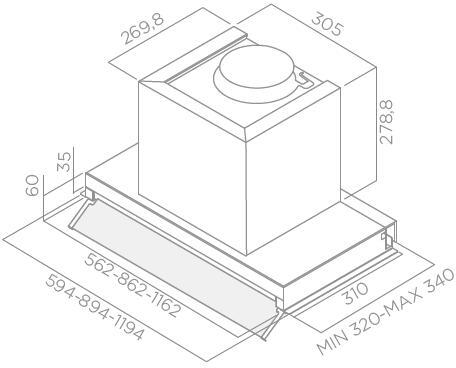

Dimensions W: 894mm x D: 320mm
Release Date June 2015
Energy Rating
View Energy Label
70 dB
Noise Level

Elica Boxin He 90cm Integrated Hood

Key Information

  • 3 Speed Levels
  • Maximum Extraction Rate (Normal Use): 610 M³/H
  • Maximum Noise Level (Normal Use): 70 dB
  • Airflow Range: 230-610 M³/H
  • Noise Level Range: 49-70 dB
  • Suitable For Air Extraction Or Recirculation Mode


  • Chimney Flue Included: n/a
  • Controls: Rotative
  • Finish: White Glass / Stainless Steel
  • Hood Type: Integrated Cooker Hood
  • Motor: Internal
  • Range: Elica Boxin HE Hood
  • Remote Control Available: No
  • Width: 89.4 cm


  • Lighting: 2.5w LED
  • Lighting Class: A
  • Number Of Lamps: 2


Technical Info

  • Minimum Distance From Electric Cooking Top: 50 cm
  • Minimum Distance From Gas Cooking Top: 50 cm
  • Product Code: BOXIN-HE-90
  • Total Power Absorption: 255W
  • Included Accessories

    • Grease Filter

    Optional Accessories Available With Hood Purchase

    • Charcoal Filter (For Recirculation): CFC0141497
    • Elica Regeneratable Long Life Filter (For Recirculation): CFC0162221
    • Chimney Kit H12: KIT0091876
    • Telescopic Chimney Kit: KIT0141458

    Associated Models

    • BOXIN-HE-90: Boxin HE 90cm Stainless Steel & White Glass (Listed Here)
    • BOXIN-HE-120: Boxin HE 120cm Stainless Steel & White Glass
    • BOXIN-HE-60: Boxin HE 60cm Stainless Steel & White Glass
    • BOXIN-60: Boxin 60cm Stainless Steel
    • BOXIN-90: Boxin 90cm Stainless Steel
    • BOXIN-120: Boxin 120cm Stainless Steel
    • BOXIN-LX-120: Boxin LUX 120cm Stainless Steel
    • BOXIN-LX-60: Boxin LUX 60cm Stainless Steel
    • BOXIN-LX-90: Boxin LUX 90cm Stainless Steel
    • BOXIN-ND-120: Boxin NO DRIP 120cm Stainless Steel
    • BOXIN-ND-60: Boxin NO DRIP 60cm Stainless Steel
    • BOXIN-ND-90: Boxin NO DRIP 90cm Stainless Steel
    Multi-D Capture
    The extraction is divided over multiple areas to guarantee the best fume capture capability. The fluid dynamic system allows you to increase the extraction speed by suitably sizing the surfaces through which the air passes. This guarantees a high cooking fume-capture efficiency through an increase in the negative pressure along the outside of the product.

    Long Life Filter
    To ensure the best performance and long term duration of your hood, traditional filters must be replaced every 3-6 months. To simplify the maintenance operations, Elica has designed the innovative, regenerable Long Life odour filter which lasts up to three years. Just wash it with hot water and neutral soap or in the dishwasher at 65° and dry it in the oven at 100° for ten minutes every two months to keep it looking as good as new. The level of efficiency is about 60%.

    Easy Maintenance
    Keeping your hood clean not only ensures maximum kitchen hygiene but also long life for the product. The Elica models are designed with materials and finishes for instant maintenance operations. All the components, such as the grease and odour filters, can be easily accessed and removed so they can be washed or rapidly replaced.

    Total Integration
    The total look trend is becoming increasingly popular in kitchens now, guaranteeing a uniform, linear design with respect to the space. The total integration products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.
