Elica ILLUS-PLS-16-CS 100cm Wide Ceiling Integrated - Custom Finish - A Rated

Seen it cheaper?
Give us a call 01737 240403

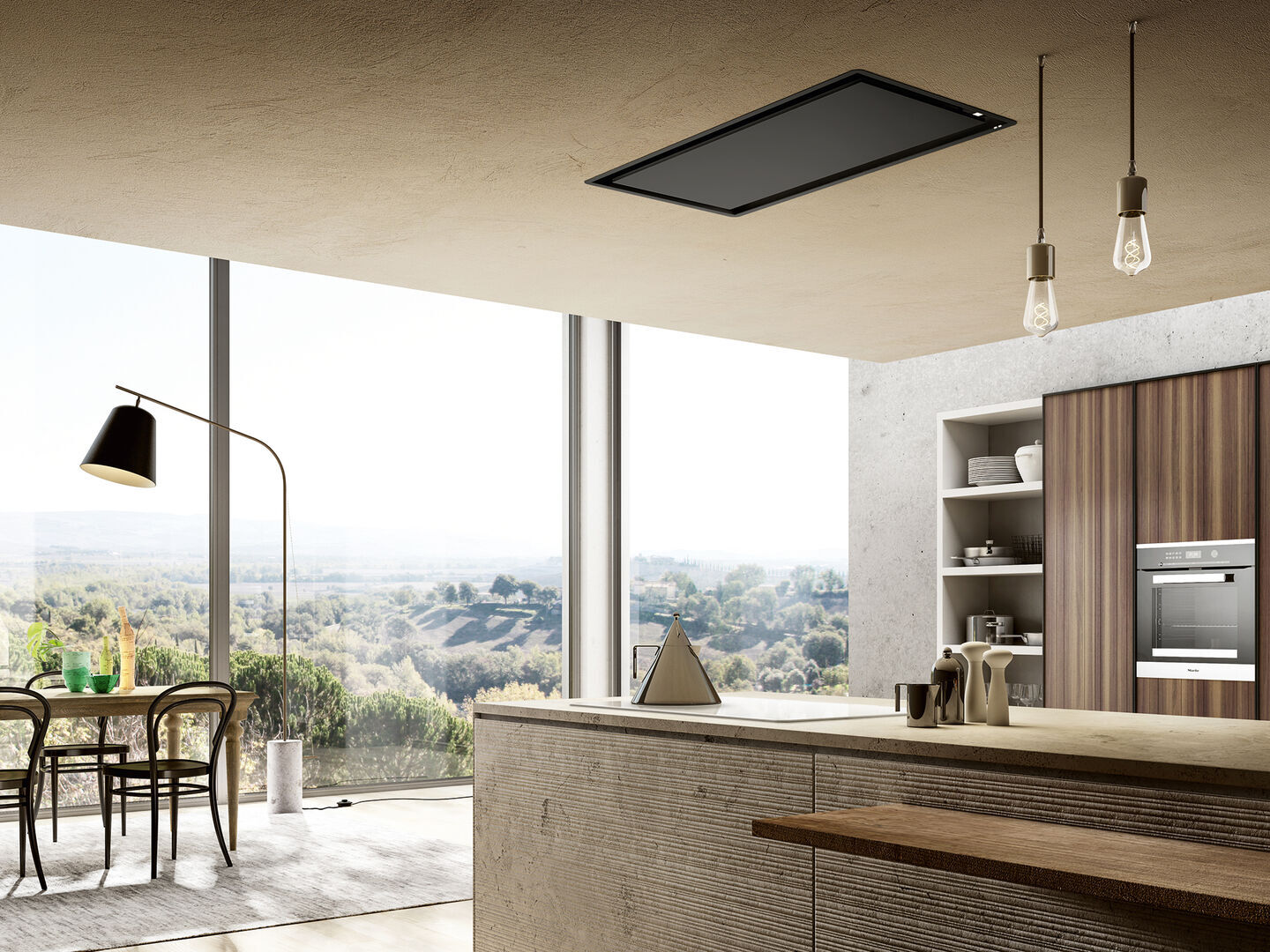

Out of the way and integrated into the ceiling, this Elica Illusion Plus ceiling hood will effectively clear the cooking odours without ruining your kitchen aesthetic. With three speeds and 2 booster power levels, you have the flexibility to pick an extraction rate that suits what you’re cooking. This hood is the ultimate partner in the kitchen thanks to its connectivity function- which allows you to adjust the settings from your phone.

Brand Elica
ILLUS-PLS-16-CS Alt Codes

EAN: Custom Finish - 8020283046764

Colour Custom Finish
Warranty 2 Years
kWh per annum 59.9 Estimate running costs Estimate costs
Approx. £17.97 per year

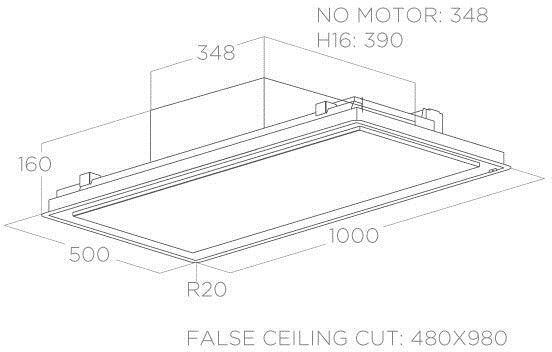

Dimensions W: 1000mm x H: 160mm x D: 500mm
Release Date February 2023
Energy Rating
View Energy Label
68 dB
Noise Level
Boost Extraction Rate

Elica Illusion Plus Ceiling Hood, 100cm- Custom Finish

Key Information


  • Chimney Flue Included: n/a
  • Controls: Remote Control
  • Finish: Custom Finish
  • Hood Type: Ceiling Integrated
  • Motor: Internal
  • Range: Elica Illusion Plus Hood
  • Remote Control Available: Yes
  • Width: 100cm


  • Lighting: 14W LED
  • Lighting Class: B
  • Number Of Lamps: 2


Technical Information

  • Product Code: ILLUS-PLS-16- CS
  • Total Power Absorption: 293W
  • Included Accessories

    Optional Accessories Available With Hood Purchase

    • Recirculating Kits
    • Additional Lighting Kit

    Associated Models

    • ILLUS-PLS-16- BK
    • ILLUS-PLS-16- WH
    • ILLUS-PLS-30- WH
    • ILLUS-PLS-30- BK
    • ILLUS-PLS-30- CS

    Please Note

    • Some images are used for illustrative purposes only.
    Long Life Filter
    To ensure the best performance and long term duration of your hood, traditional filters must be replaced every 3-6 months. To simplify the maintenance operations, Elica has designed the innovative, regenerable Long Life odour filter which lasts up to three years. Just wash it with hot water and neutral soap or in the dishwasher at 65° and dry it in the oven at 100° for ten minutes every two months to keep it looking as good as new. The level of efficiency is about 60%.

    Comfort Silence
    With the widespread tendency to design open plan kitchens joined to the living room, it has become important to be able to rely on hoods with a greater extraction capability which are quieter, so they do not intrude on surroundings. Thanks to comfort silence, the sound level of Elica hoods at maximum extraction speed does not disturb the conversation of those present.

    Tune White
    Different tones of light are called for depending on the time of day. Cool light is excellent for cooking while warm light creates a more relaxing mood. The tune white function allows you to adjust the LED colour from warm white up to cool white. With this function you can also align the colour of the light from the hood with the rest of the lights in the room for a uniform atmosphere throughout.

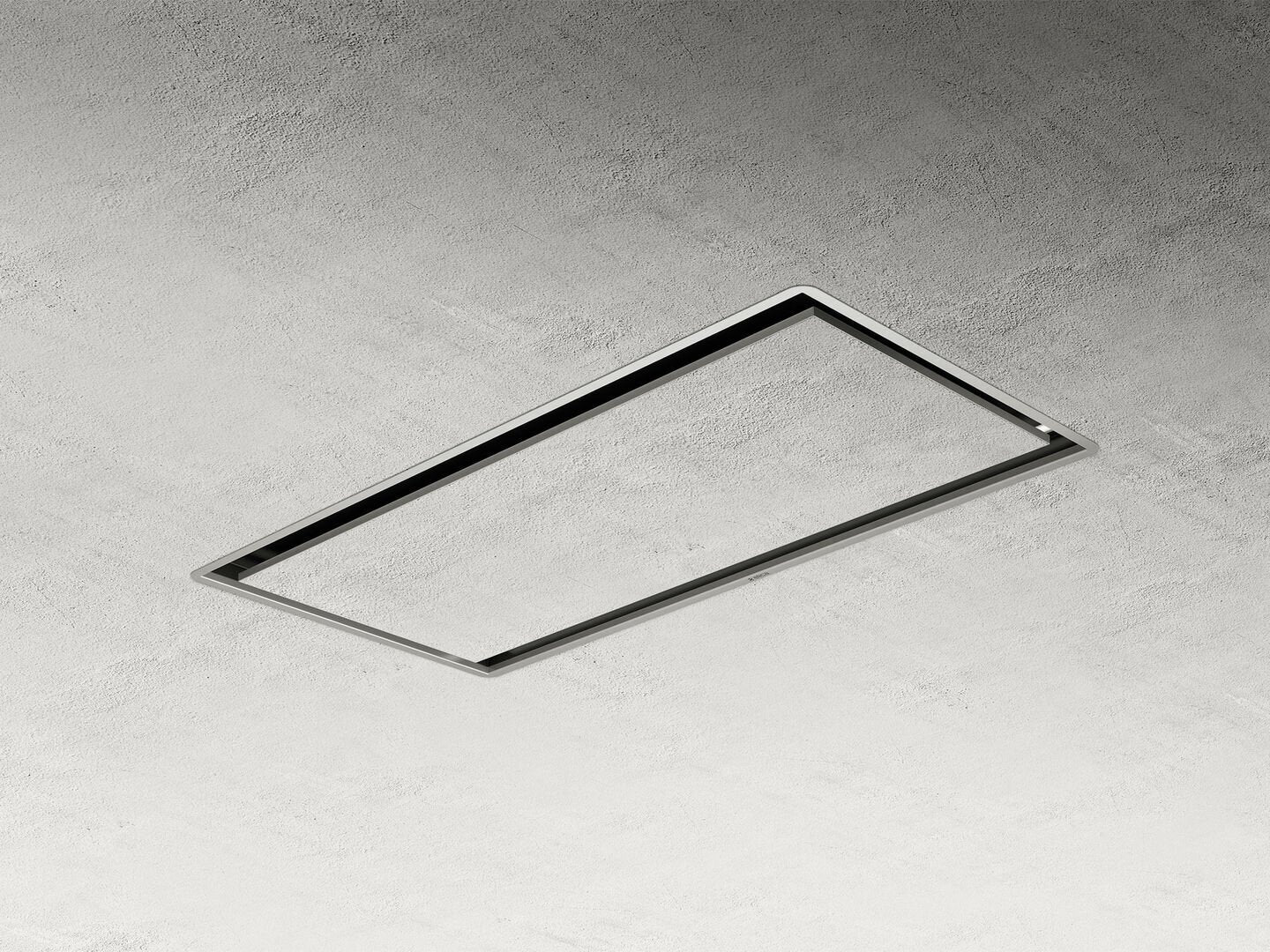

    Total Integration
    The total look trend is becoming increasingly popular in kitchens now, guaranteeing a uniform, linear design with respect to the space. The total integration products have been designed to be seamlessly integrated into the kitchen whilst maintaining harmony with the surroundings.

    Dim Light
    The dim light function from Elica allows you to adjust the intensity of your extraction hood light with a simple control. Maximum light for the best visibility on the worktop or dimmed when relaxing.

    AIRMATIC sensor is able to monitor the quality of air both during and out of the cooking moment. The sensor detects unpleasant odours and cooking vapors, but also pollutants like cleaning solvents, cigarette smoke and all the volatile organic compounds (VOC) that are in the air. It automatically adjusts air extraction. When air quality has returned to an optimal level, the product switches off by itself avoiding any energy waste. This advanced technology allows you to obtain the best balance between simplicity of use, energy efficiency and noise.

    The Wi-Fi connection technology enables voice control with the Amazon voice assistant Alexa or with the Elica App on your smart phone. You can adjust extraction power and adjust the lights intensity and colour. The App for mobile devices also returns feedback on the maintenance of filtering systems and air quality.
